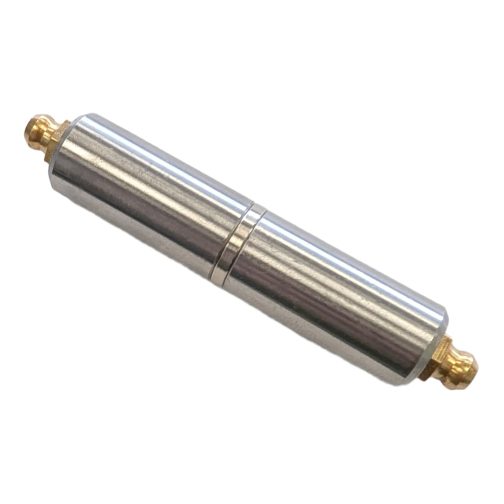

Hybrid Weld-On Hinge

£6.49 inc. VAT (£5.41 exc. VAT)

  • Durable 100mm (4 inch) mild steel body – perfect for welding to narrowboat shells
  • 316 marine-grade stainless steel pin & washer for corrosion resistance
  • Fixed washer for secure alignment
  • Removable pin for easy hinge maintenance and part replacement
  • Dual Grease function to protect against water ingress
SKU: FSP-0100G/F-316SS PIN Categories: ,
Bulk order discounts
Over 10 hinges - 5% discount
Over 25 hinges - 30% discount
Over 100 hinges - 35% discount

Designed specifically for narrowboats and other steel shell applications, this hinge features a mild steel body paired with a marine-grade 316 stainless steel removable pin and a fixed washer for added durability and corrosion resistance.

Whether you’re upgrading from a standard weld-on hinge or building from scratch, this hybrid hinge provides a unique combination of strength, convenience, and corrosion resistance, tailored to address common issues experienced in steel vessel construction.

Recommended weight per pair:

100mm (4 inch) 98kg


PLEASE NOTE: The weights are for comparison purposes only, environmental applications may affect these figures.

Hinge Material

316 Stainless Steel

Length

100mm (4 inch)

Grease Function

Yes
